¥175,480 JPY ¥187,000 JPY
| /
Brand |
TODA RACING
|
Series Name |
Exhaust Manifold 4-2-1 SUS
|
Product Number |
18100-DC2-981
|
Compatible Car |
INTEGRA TypeR
|
Compatible Models |
B18C-R
|
Product Description |
In order to get the best performance, engine power, efficiency, this exclusive exhaust manifold design takes into consideration not only the special characteristics of VTEC B18C-R engine but also the results of an extensive bench testing program.

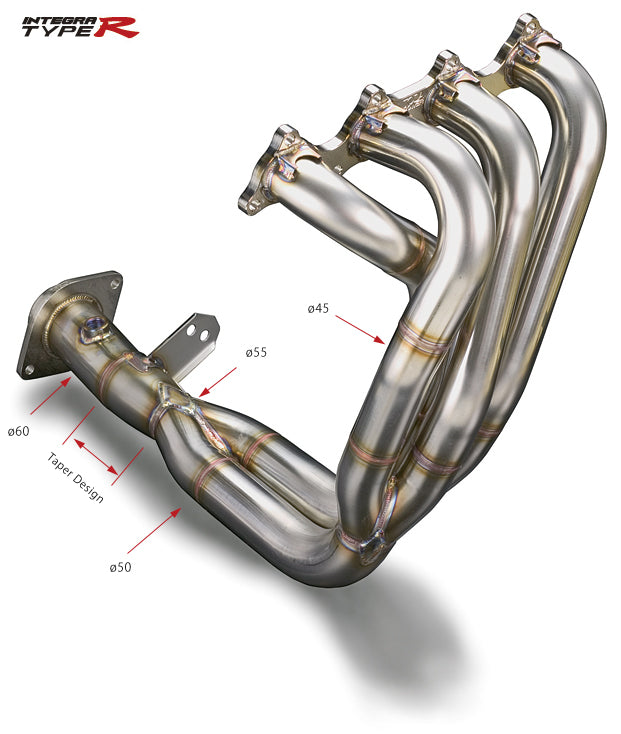

-Our 4-2-1 type now available as Ver.2 strengthened The part of a racing look is removed by the strong request from the competition customers. It became simple structure. -The reinforcement plate is added The reinforcement plates are added to each racing junction and a head plate to each pipe exit. -A bench test (Equal length 4-2-1 + Taper) design Ø45mm → Ø50mm → Ø55mm → Taper → Ø60mm *Taper design is adopted from feedback from both racing and the bench testing. -Racing high flow junctions design Each section of the manifold has optimized pipe lengths, diameters and angles as well as high flow junctions. -Made of light weight stainless steel for both durability and looks -Flange manufactured by high precision machining center -The standard catalyst can be installed. Engine type: B18C-R (DC2/DB8) 98spec Size: |
Remarks |
Ver.2 For 98spec
*The only difference between this and the DC2 96 spec Exhaust manifold is the 2cm offset of the rear flange. (basic specification is the same as 96's) |
Notes |
Images are for illustration purpose only. Actual product may vary.
|
