¥3,400 JPY ¥3,850 JPY
| /
| Brand | TODA RACING |
| Series Name | PISTON RING |
| Product Number | 13111-870-001 |

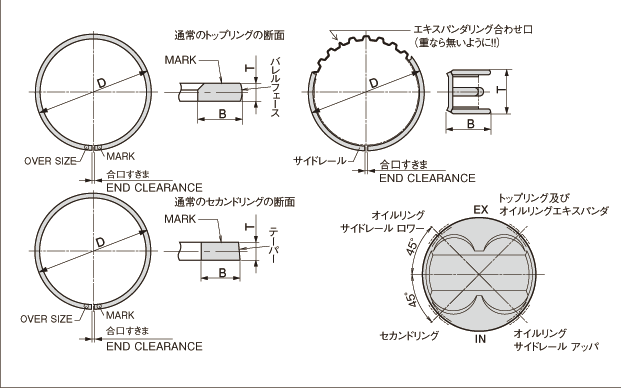

| Product Description | Nominal Diameter: ø87.00 [Top Ring] - Taper x Barrel Face (mm): 1.2 × 3.3 - Gap in the joint: 0.25–0.35 - Outer Circumference Shape: Barrel - Contact Surface Color: Silver [Second Ring] - Taper x Barrel Face (mm):1.2 × 3.25 - Gap in the joint: 0.25–0.60 - Outer Circumference Shape: Taper - Contact Surface Color: Silver [Oil Ring] - Taper x Barrel Face (mm): 2.5 × 2.85 - Gap in the joint: 0.2–0.7 - Outer Circumference Shape: Niflex - Contact Surface Color: Silver 3SG (SXE10), 3SG (SXE10) 2200KIT, 3SGT (SW20), 2JZ-GE, 2JZ-GTE |
| Remarks | *Although the piston rings are designed so that the gap between the rings is within the above standards, the gap between the rings will vary depending on the cylinder bore diameter, so please check and adjust accordingly. *When installing the piston rings on the piston, do not widen the gap between the rings more than necessary. Also, do not twist the gap between the rings vertically at the same time. This may cause deformation or damage to the piston rings. |
| Notes | Images are for illustration purpose only. Actual product may vary. |
