SEEKER SWINGING SPRING BRACKET FOR HONDA CIVIC FD2 13040-FD2-001

¥28,223 JPY ¥30,240 JPY

| /

 More payment options
Brand
SEEKER
Series Name
SWINGING SPRING BRACKET
Product Number
13040-FD2-001
Compatible Car
HONDA CIVIC FD2
Product Description
The rear of the FD2 has a separate spring and damper, but in the case of a series-wound spring that is often seen in harmonic drive, the spring can be expanded and contracted straight because the positional relationship between the spring upper and lower is greatly displaced during stroke. not.
Since it is best to expand and contract the spring straight, we have provided a mechanism to freely swing the bracket side.
By simplifying the structure, we have achieved relatively low cost and high durability, and succeeded in suppressing the height as much as possible.

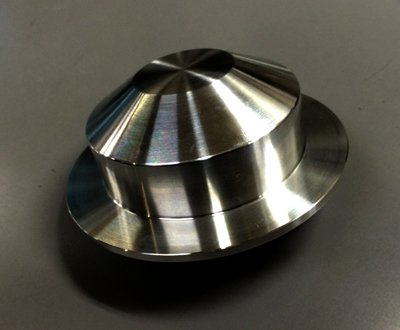

This silver-colored bracket has a two-piece structure and has a certain degree of runout.
Use it by setting it on the underside of the spring as shown in the image.
This allows the rear springs to be used properly (smooth expansion and contraction is possible), resulting in a significant improvement in the movement of the rear suspension.
In particular, the advantage of improving the transient characteristics when the spring expands and contracts is great, and in the test vehicle, it is possible to turn with the rear tires more firmly, and the running performance and riding comfort are also improved.

This product is designed to suppress the height of the bracket as much as possible, but it has a certain thickness to secure the swing amount.
I think that there are many vehicles that use genuine rubber for the spring lower, but since the vehicle height will increase by about 10 mm compared to the use with genuine rubber, the spring adjuster side of the upper will decrease by 10 mm. It is necessary to adjust.

We also offer a spring adjuster designed to allow you to lower down to the limit as an option. (Black-red parts in the image)
When this adjuster is used together, a considerable lowdown is possible even with a long spring of 6 inches.

Of course, if you can afford to lower the adjuster you are currently using, you can use it in combination as it is.

Please try a higher-grade suspension setting that can be obtained only by optimizing the expansion and contraction of the spring.


■ From the shipment on March 15, 2016, we have added a molybdenum coat to the sliding parts for initial familiarity and further improvement in durability.

FD2 Civic R Swinging spring bracket "Neck Furi-kun"
Rear ID65 for series-wound spring only
Aluminum machined 2-piece structure
* Basic if the spring ID and height dimensions match It can be used for any harmonic drive.
(Limited to those with the spring adjuster installed on the upper side)
* Spring adjuster (red and black parts in the image) is not included.



* Since this product uses grease, we recommend that you regularly apply grease to the sliding parts. (You don't have to do it often)
Option selection: SWINGING SPRING BRACKET Only for one "Neck Furi-kun" FD2 Civic R Swinging spring bracket "Neck pretend"
Rear ID65 Series-wound spring only
Aluminum machined 2-piece structure
* Basically any harmonic drive if the spring ID and height dimensions match You can use it.
(Limited to those with the spring adjuster installed on the upper side)
* Spring adjuster (red and black parts in the image) is not included.



* Since this product uses grease, we recommend that you regularly apply grease to the sliding parts. (You don't have to do it often)
Option selection: SWINGING SPRING BRACKET Only for one "Neck Furi-kun" FD2 Civic R Swinging spring bracket "Neck Furi-kun"
Rear ID65 Series-wound spring only
Aluminum machined 2-piece structure
* Basically any harmonic drive if the spring ID and height dimensions match You can use it.
(Limited to those with the spring adjuster installed on the upper side)
* Spring adjuster (red and black parts in the image) is not included.



* Since this product uses grease, we recommend that you regularly apply grease to the sliding parts. (You don't have to do it often)
Option selection: SWINGING SPRING BRACKET Only for one "Neck Furi-kun"
Notes
Images are for illustration purpose only. Actual product may vary.
