¥39,225 JPY
– Discontinued| /
Brand | NISMO |
Series Name | Fuel Pressure Regulator |
Product Descriptions | A standard, light-weight & small regulator with the addition of a function for fuel pressure adjustment. Adjustment range and pressure valve work the same as the standard larger-sized regulator previously used. By controlling fuel pressure, you can maximize performance by finding the ideal setting for injector delivery.

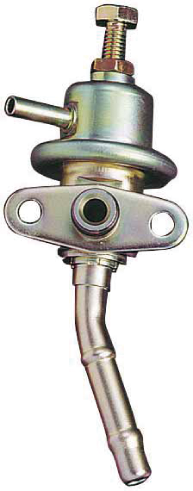

Fuel Pressure Regulator
P=196~588kPa (2~6kgf/cm2)
FUEL LINE CONNECTION IN: Fuel direct pipe attachment, O ring sealing
FUEL LINE CONNECTION OUT: Rubber hose connection
Fuel pressure adjustment range: 196 to 588 kPa (2 to 6 kgf / cm 2 at 40 L / h flow rate)
Diaphragm diameter: φ36.5
Operating temperature range: -30 to + 120 ° C
Pressure gradient: 157 × 10 kPa / L / h
Vibration resistance: 250 m / sec |
Product Number | 22670-RR580 |
Compatible Vehicle | NISSAN 180SX RPS13 |
Engine | SR20DET |
Remark | O ring included |
Notes | Images are for illustration purpose only. Actual product may vary. |
