¥85,536 JPY
| /
Brand | J'S RACING |
Series Name | TSUCHINOKO CHAMBER KIT CARBON KOUKI |
Product Number | TCC-E2-K |
Compatible Car | HONDA ACCORD CL7 |
Compatible Engine | K20A |

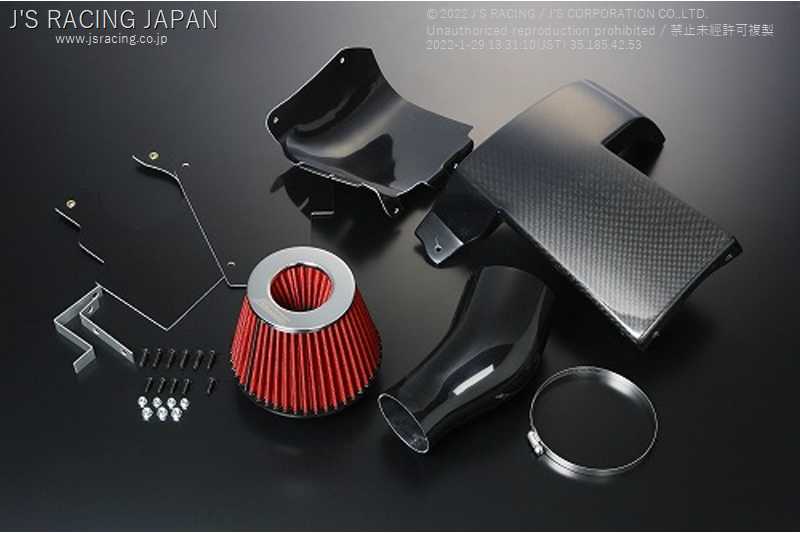

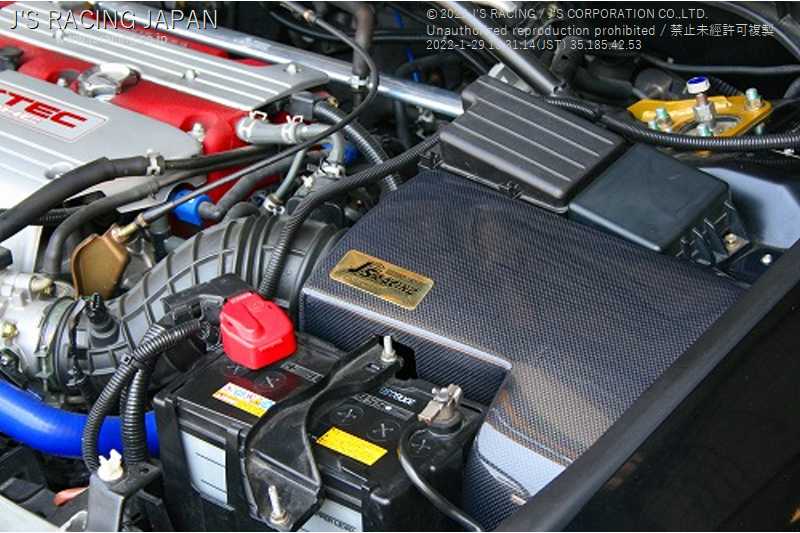

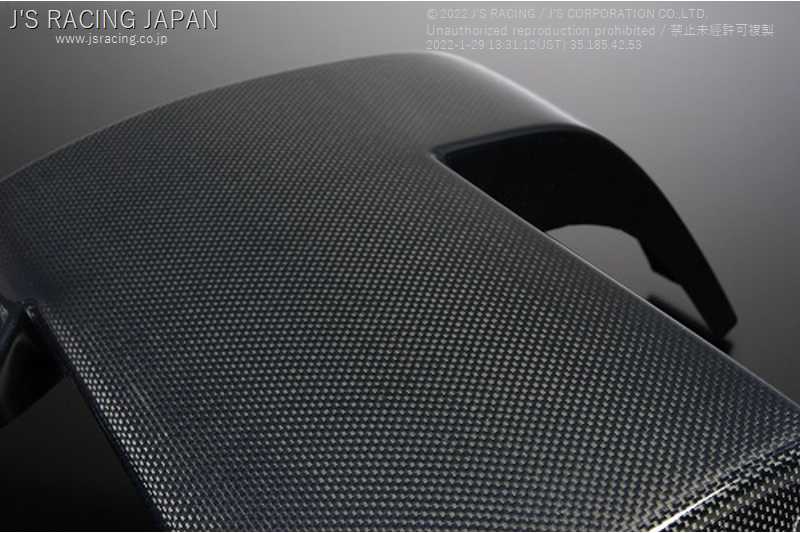

Product Description | Material: CFRP & FRP The Accord CL7 dedicated air intake system has been completed, which aims for reliable power-up by repeating a long development period of about one year and trial and error. [Inclined heat cover & chamber structure] By storing the chamber and air filter part that effectively used the small engine room space in the oblique heat cover, the hot air in the engine room is sucked in. It is possible to always take in fresh air without doing it. [Dedicated air duct & bulkhead plate] The attached dedicated air duct is set inside the bumper. The fresh air obtained from the inside of the bumper by this method passes through the inside of the fender which is made into a large capacity intake box by the dedicated partition plate, and guides the ram air to the large diameter air filter. Also designed so that it does not directly touch the filter due to the special partition shape. We have also cleared the driving test in the rainy weather with a lot of rainfall. [Dynopack test] We performed a power check in the order of normal, external air cleaner, and Tsuchinoko chamber. All are the same vehicle and the engine is normal. At this time, the performance test of the chamber body was carried out without sending the fan wind to the intake side. Please pay attention to the dramatic improvement of torque as well as power. In addition, the Tsuchinoko chamber, which greatly affects the running wind, promises to improve power and torque beyond the data by running. Set contents: Carbon FRP diagonal heat cover, FRP chamber body, FRP dedicated partition plate, dedicated air duct, filter joint, dedicated air filter, hoses, J' |
Remarks | Engine: K20A Applicable models CL7-120, -130, -320 Accord Euro R CL9-120, -130 Accord late (K24) CM2-120, -130, -320 Accord wagon early |
Notes | Images are for illustration purpose only. Actual product may vary. |
