HKS R TYPE INTERCOOLER & PIPING KIT FOR HONDA CIVIC TYPE-R FL5 K20C 13001-AH007

¥178,080 JPY ¥206,800 JPY

| /

 More payment options
Brand
HKS
Series Name
R TYPE INTERCOOLER & PIPING KIT
Product Number
13001-AH007
Compatible Car
HONDA CIVIC TYPE-R FL5
Compatible Engine
K20C
Product Description
YEAR MODEL: 22/09 -
■ Features
Intercooler: The core area has been increased by 22.4% compared to the original, expanding the area exposed to the wind while driving and improving cooling performance. By increasing the core capacity, it can handle everything from boost up to turbo replacement. This layout allows installation even with genuine piping.

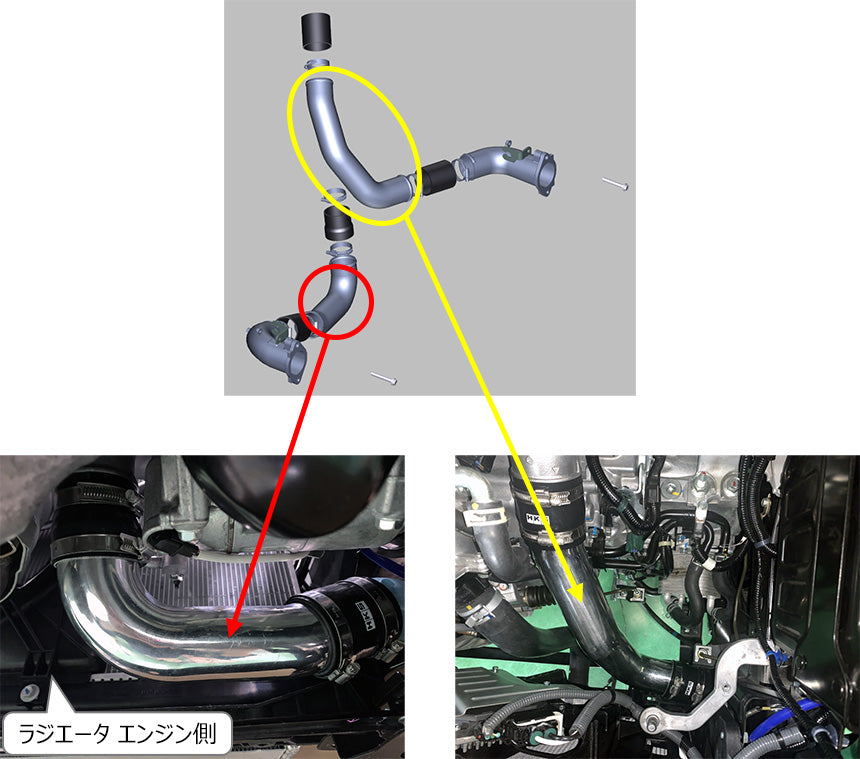

Piping Kit: Compared to the stock piping, the pipe diameter is enlarged and the shape is smoother, making it possible to handle high output. By replacing the stock hose with an aluminum pipe, expansion is suppressed and pressure loss caused by the expansion of the hose inside the intake pipe is eliminated. The bent pipes are mirror-finished with a buffed finish, and the cast pipe core features the HKS logo, helping to dress up your car.

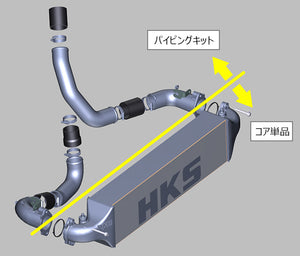

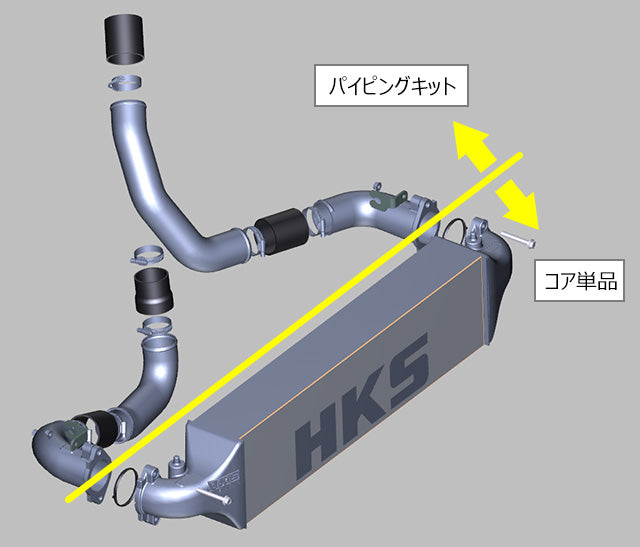

■ Kit configuration
[Core only]: Intercooler Core; Masking sheet for logo spray
[Full kit] Core only + piping kit
[Piping kit]: Aluminum bent pipe (IN/OUT); Cast pipe (IN/OUT); Silicone Hose; Bracket (IN/OUT); Hose clamp; Dedicated bolts and nuts
CORE SPECIFICATIONS:

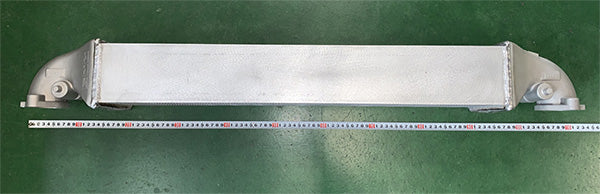

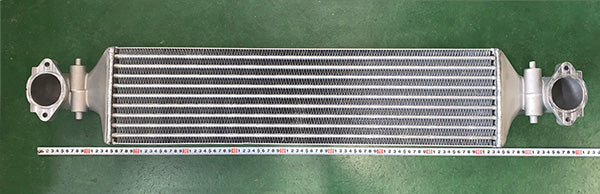

Core size: 695 x 178 x 100; Core specifications: 10 fins, 9 tubes; Tank: Aluminum casting
Performance: Output: 245[kW] (333[PS]/6500[rpm]; Torque: 449.5[N・m]; (45.9[kg・m])/3260[rpm]; Cooling performance: I/C outlet 30.3°C (7000[rpm] rpm]); Cooling efficiency: 88% (7000[rpm])
PIPING SPECIFICATIONS: in No.1: Aluminum bent pipe (inner diameter φ60); in No.2: Aluminum casting (bracket separate); out No.1: Aluminum casting (bracket separate); out No.2: Aluminum bent pipe
Remarks
Core + Piping Kit
■Notes

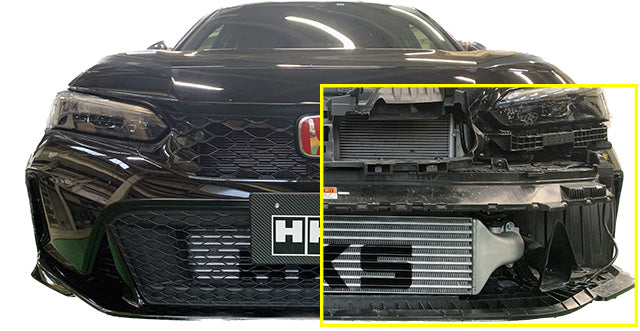

*1. To install the intercooler assembly, it is necessary to modify the air guide inside the bumper and relocate the outside air temperature sensor. There is no modification to the reinforcement.
*2. To install the piping, it is necessary to cut the bracket on the vehicle body.
*3. For the FULL KIT, the measures (*1) and (*2) are required.
Notes
Images are for illustration purpose only. Actual product may vary.
