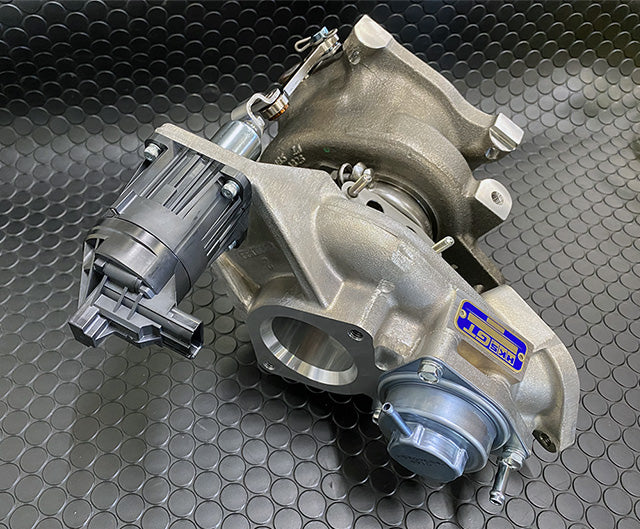

HKS GT SPORTS TURBINE KIT FOR HONDA CIVIC TYPE R FL5 K20C 11004-AH006

HKS

GT SPORTS TURBINE KIT

11004-AH006

HONDA CIVIC TYPE R FL5

K20C

YEAR: 2022.09~

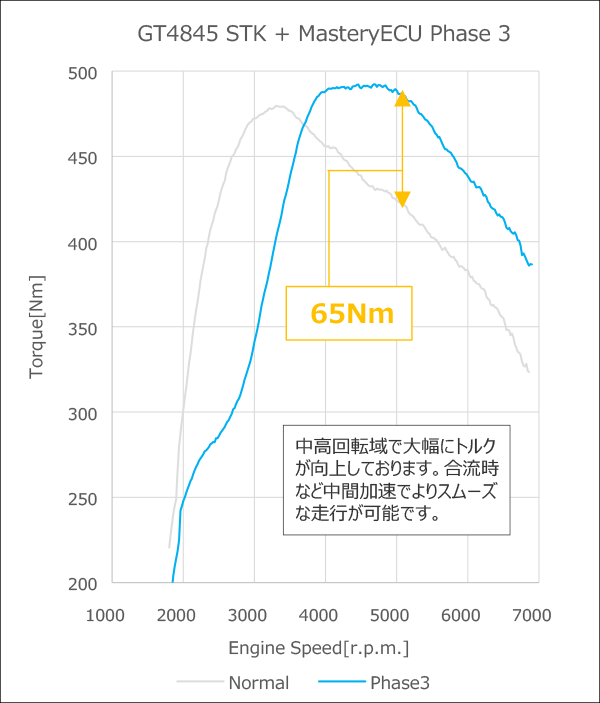

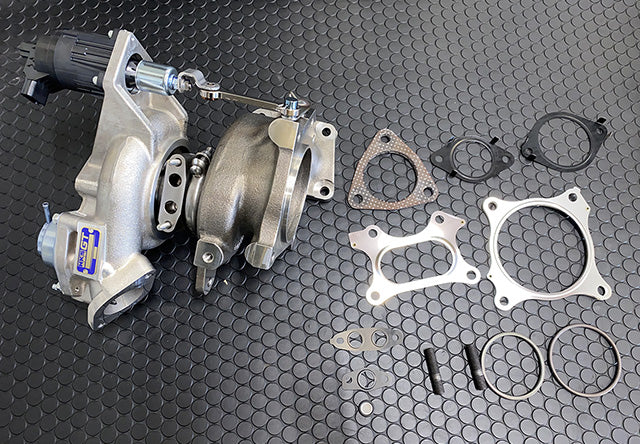

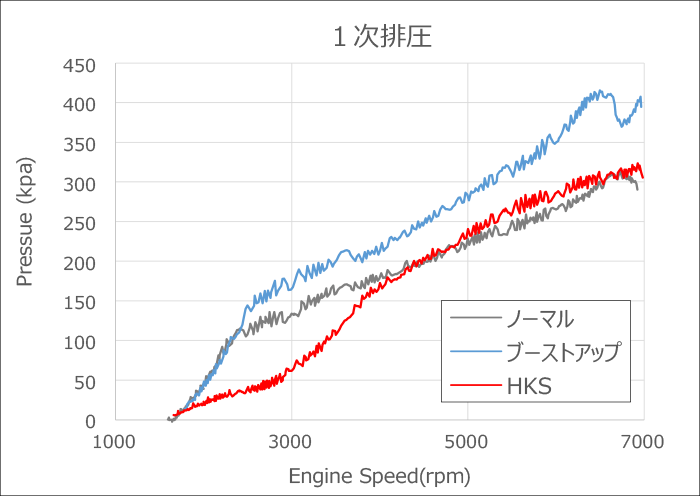

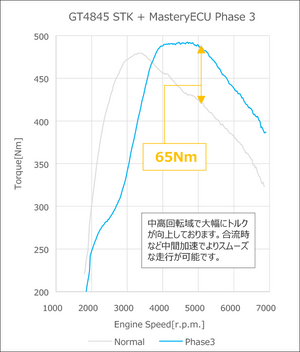

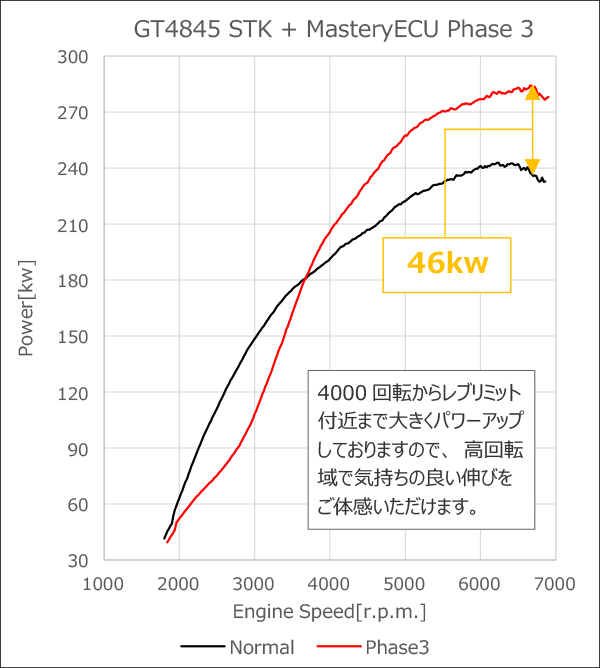

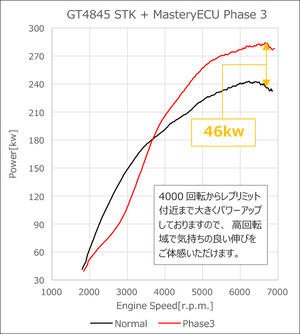

TYPE: GT SPORTS TURBINE KIT Turbine Size: GT4845 Set boost pressure: Based on ECU data (electric ACT)Features:Improved power output at high RPMs that cannot be achieved with stock boostDesigned to be used without fuel system upgradesCan be installed without modification due to its genuine shapeCombined with a Mastery ECU and intercooler, you can enjoy high power with peace of mind.An ECU control system is required to bring out the best in turbine performance.Vehicle-specific packages including the GT4845 sports turbine kit and Mastery ECU PHASE3 will also be released at the same time.Components:Turbo ASSY / Exhaust system gasket / Intake system gasket / Water line gasket / Oil line gasket / Bolts* Gaskets and stud bolts required for turbine replacement are included.Performance:GT4845 sports turbine kit and Mastery ECU PHASE3 specification achieves 40kw (54ps) increase over stockThe primary exhaust pressure is the same as the stock one, allowing efficient supercharging and improving the engine's power output without any strain.GT4845 STK + MasteryECU Phase 3: Maximum power: 282kW (384ps) / Maximum torque: 492N・m (50.2kgf・m) / Boost pressure: 181kPa (1.85kgf/cm2)

With a standard turbine, including the boost-up specification, the boost drops at high RPMs, but with the GT4845, the boost pressure is maintained even at high RPMs.When testing the FL5 at Fuji Speedway, compared to the Mastery ECU PHASE 2 boost-up model, the top speed went from 232km/h to 244km/h, an improvement of about 3 seconds in lap time, or +12km/h!

Images are for illustration purpose only. Actual product may vary.
