¥145,728 JPY ¥165,000 JPY
| /
| Brand |
GANADOR
|
| Series Name |

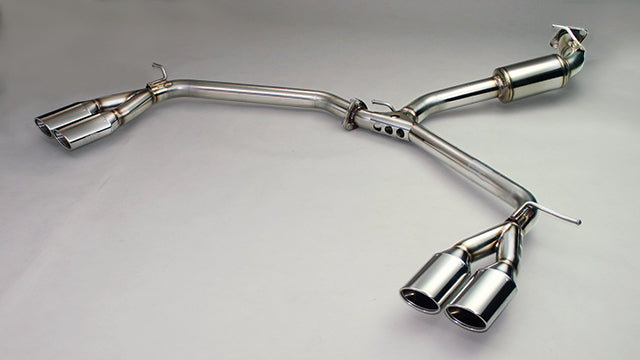

GANADOR PASION EVO EXHAUST FOR TOYOTA ALPHARD VELLFIRE AYH30W H27 1-R1 2AR-FXE-2JM-2FM 2,493CC PAE-071
|
| Product Number |
PAE-071
|
| Compatible Car |
TOYOTA ALPHARD VELLFIRE AYH30W H27 1-R1
|
| Compatible Engine |
2AR-FXE-2JM-2FM 2,493CC
|
| Product Description |
Compatible Year Model: 2015/01- <br> Model name: ALPHARD <br> Compatible grades: SR / ZR grade <br> Compatible vehicle model: DAA-AYH30W 6AA-AYH30W <br> Drivetrain: Hybrid <br> Engine model: 2AR-FXE-2JM-2FM 2,493CC <br> Brand name: PASION EVO <br> Power: GD: 224.0 ps / 5,310 rpm (OEM: 214.1 ps / 5,110 rpm) <br> Torque: GD: 33.7 kgf m / 4,580 rpm (OEM: 31.4 kgf m / 4,750 rpm) <br> Idling volume dB: GD: 64.0 (OEM: 58.0) <br> Proximity exhaust volume dB: GD: 76.0 (OEM: 73.0) <br> Muffler weight kg: 10.8 <br> Tail diameter: 105X70φ oval (quad exit, 2 left + 2 right) <br> Pipe diameter: 70φ-60φW <br> Attached parts: G01 gasket (1) / M8X30 bolts & spring washers & cap nuts (3S) / M8X15 bolts & flat washers & flange nuts (2S) / supplied rubber mount φ12 (1) / supplied bracket (1) / earth line 250mm / instruction manual <br> Genuine reused parts: OEM gasket (1 pc) / special bolt & spring (2S) / OEM rubber mount (3 pcs) <br> Special notes: For hybrid only. For Alphard SR grade / Vellfire ZR grade. Optional aero parts have not been verified. As this is a quad exit (2 left + 2 right), the rear passenger-side under cover is removed. The blue anodised section at the tail tip is not identical on every unit and may vary slightly. Do not use anything containing abrasives; clean carefully with a neutral detergent. <br> Also listed for: VELLFIRE
|
| Remarks |
SR / ZR grade. For hybrid only. For Alphard SR grade / Vellfire ZR grade. Optional aero parts have not been verified. As this is a quad exit (2 left + 2 right), the rear passenger-side under cover is removed. The blue anodised section at the tail tip is not identical on every unit and may vary slightly. Do not use anything containing abrasives; clean carefully with a neutral detergent.
|
| Notes |
Images are for illustration purpose only. Actual product may vary.
|
