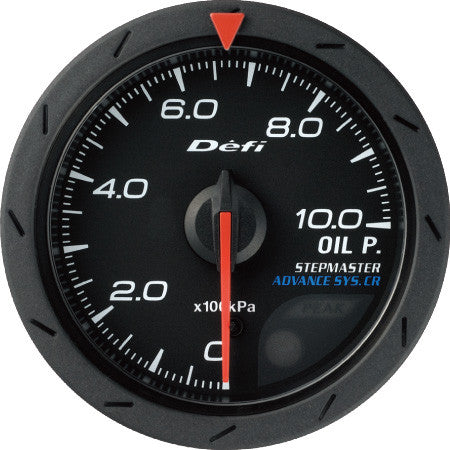

Defi Gauge Meter Advance CR Oil Pressure Meter (0kPa to 1000kPa) 52mm Black DF08102
Defi Gauge Meter Advance CR Oil Pressure Meter (0kPa to 1000kPa) 52mm Black DF08102
¥23,403 JPY
– Discontinued
| /
Defi-Link Meter ADVANCE CR is gauge series which need to be connected to Defi-Link ADVANCE Control Unit (DF07703, sold separately).
Turbo/boost/in-mani, oil press, fuel press, oil temp, water temp, exhaust temp, and tachometer are available. Color: White and black dials are available. Size: 52mm and 60mm are available. (Only 60mm is available regarding turbo120kPa, in-mani, fuel press, exhaust temp, and tachometer.)
Illumination color: Can be changed between two colors. White dial: Blue/Amber red Black dial: White/Amber red
One ADVANCE Control Unit operates up to 7 gauges or displays in total.
Main specifications, functions, and features
ADVANCE System
ADVANCE Control Unit necessary
Commercial attachment necessary
Stepping motor: STS26/VS2
Display color: dial white/black
Illumination color: Black dial->white/red, White dial->blue/red
Illumination ON/OFF: interlocked with vehicle illumination switch
LED illumination
Indicator output
Built-in indicators
Driving data can be recorded & replayed
Opening mode/Ending mode
Size: 52mm/60mm
Applicable number of cylinders: 1, 2, 3, 4, 5, 6, and 8
Mounting bracket attached
The illumination would be automatedly turned ON/OFF by connecting to ADVANCE ZD.
Lineup
Turbo(200kPa/120kPa)
Intake manifold pressure
Oil pressure
Fuel pressure
Oil temperature
Water temperature
Exhaust temperature
Tachometer
Warning
The product of Defi-Link ADVANCE SYSTEM cannot be connected with the product of Defi-Link SYSTEM. It is not compatible with the product of Defi-Link SYSTEM. Sensors are common in ADVANCE system and Defi-Link System except turbo sensor, but sensor wires are not common.
Defi-Link ADVANCE Control Unit is necessary to operate ADVANCE CR gauges (DF07703, sold separately).
