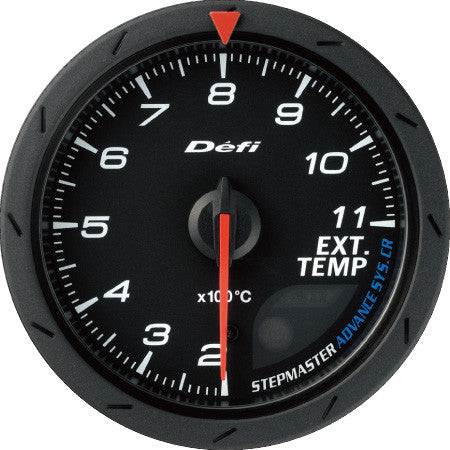

Defi Gauge Meter Advance CR Exhaust Temperature Meter (200 to 1100 degrees C) 60mm Black DF09302
Defi Gauge Meter Advance CR Exhaust Temperature Meter (200 to 1100 degrees C) 60mm Black DF09302
¥23,403 JPY
– Discontinued
| /
Defi-Link Meter ADVANCE CR is gauge series which need to be connected to Defi-Link ADVANCE Control Unit (DF07703, sold separately).
Turbo/boost/in-mani, oil press, fuel press, oil temp, water temp, exhaust temp, and tachometer are available. Color: White and black dials are available. Size: 52mm and 60mm are available. (Only 60mm is available regarding turbo120kPa, in-mani, fuel press, exhaust temp, and tachometer.)
Illumination color: Can be changed between two colors. White dial: Blue/Amber red Black dial: White/Amber red
One ADVANCE Control Unit operates up to 7 gauges or displays in total.
Main specifications, functions, and features
ADVANCE System
ADVANCE Control Unit necessary
Commercial attachment necessary
Stepping motor: STS26/VS2
Display color: dial white/black
Illumination color: Black dial->white/red, White dial->blue/red
Illumination ON/OFF: interlocked with vehicle illumination switch
LED illumination
Indicator output
Built-in indicators
Driving data can be recorded & replayed
Opening mode/Ending mode
Size: 52mm/60mm
Applicable number of cylinders: 1, 2, 3, 4, 5, 6, and 8
Mounting bracket attached
The illumination would be automatedly turned ON/OFF by connecting to ADVANCE ZD.
Lineup
Turbo(200kPa/120kPa)
Intake manifold pressure
Oil pressure
Fuel pressure
Oil temperature
Water temperature
Exhaust temperature
Tachometer
Warning
The product of Defi-Link ADVANCE SYSTEM cannot be connected with the product of Defi-Link SYSTEM. It is not compatible with the product of Defi-Link SYSTEM. Sensors are common in ADVANCE system and Defi-Link System except turbo sensor, but sensor wires are not common.
Defi-Link ADVANCE Control Unit is necessary to operate ADVANCE CR gauges (DF07703, sold separately).
