¥173,052 JPY ¥209,000 JPY
| /
| Brand | CUSCO |
| Series Name | PRO ADJUST LSD TYPE RS 1WAY REAR |
| Product Number | LSD 6C2 R |
| Compatible Car | TOYOTA 86 ZN6 GR86 ZN8 SUBARU BRZ ZC6 ZD8 |
| Compatible Engine | FA20 FA24 |

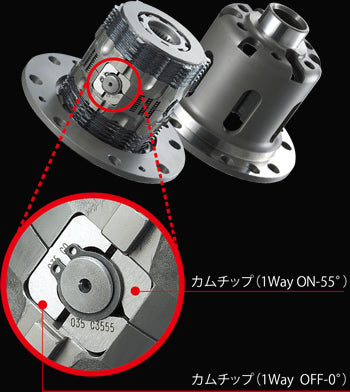

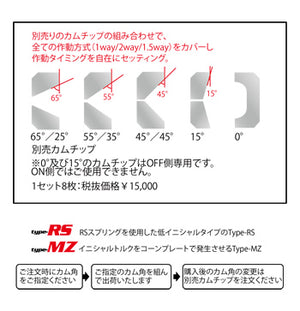

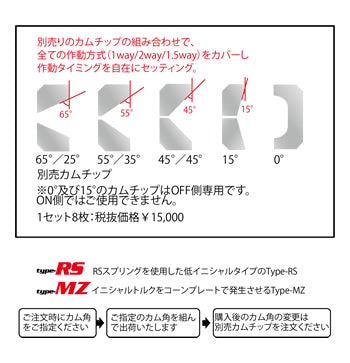

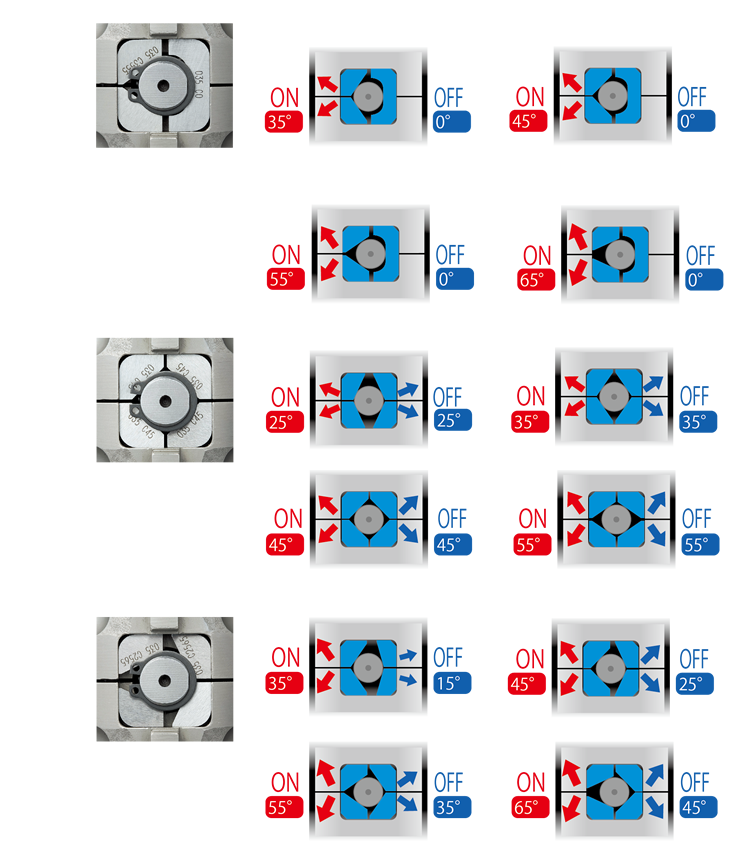

| Product Description | Compatible Year Model: 86 ZN6 2012/04-2021/10, BRZ ZC6 2012/03-2021/03 and GR86 ZN8 2021/10-, BRZ ZD8 2021/08- CUSCO PRO ADJUST LSD - professional specification mechanical LSD with selectable operating cam angle, ordered to your setting Available in 1way, 1.5way and 2way operation Selectable cam angles: 0, 15, 25, 35, 45, 55, 65 degrees, ON side and OFF side each specified independently at order time. 0 and 15 degree cam chips are for the OFF side only Standard specification: front 35 degrees 1way, rear 55 degrees 1way Larger cam angle gives faster engagement timing and stronger locking effect |
| Remarks | Order production item. Specify the ON side and OFF side cam angles at order time, otherwise the standard cam setting is supplied. Circuit Spec part number. Cannot be used with the standard final gear. For TOYOTA genuine 4.875 final gear 41201-69615 and 5.125 final gear 41201-29736 only. Requires TOYOTA genuine parts sold separately: companion flange 41204-35082, oil slinger 41214-26011, bearing spacer 41231-24010, oil seal 90311-41009. Shift indicator accuracy is lost after final gear change. |
| Notes | Images are for illustration purpose only. Actual product may vary. |
