¥180,023 JPY ¥239,800 JPY
| /
| Brand |
HKS
|
| Series Name |

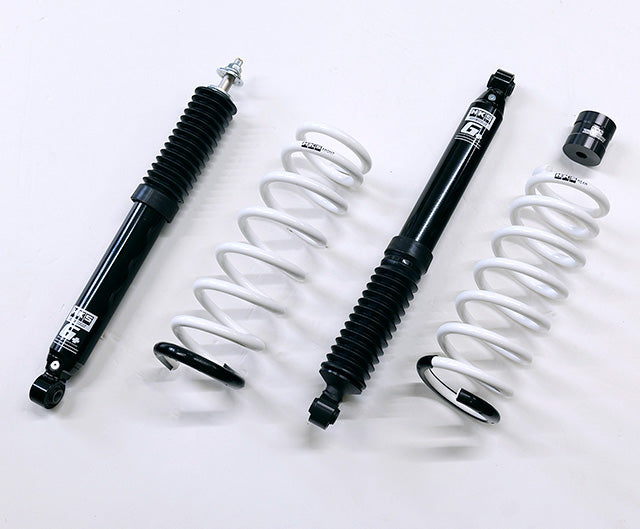

HKS HIPERMAX G+ COILOVER SUSPENSION FOR SUZUKI JIMNY NOMAD JC74W K15B 80270-AS006
|
| Product Number |
80270-AS006
|
| Compatible Car |
SUZUKI JIMNY NOMAD JC74W
|
| Compatible Engine |
K15B
|
| Product Description |

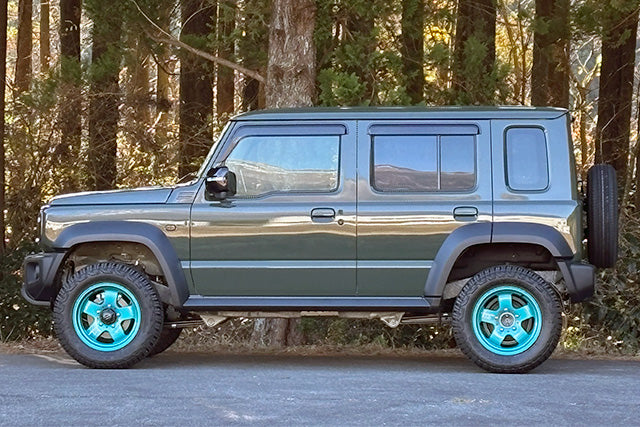

● Model Year: April 2025 onwards<br>● Series Name: G+<br>● Full kit spring rate settings F/R (N/mm (kgf/mm)): F=45(4.6) R=39(4)<br>Free length (F/R mm): Special<br>● Damping force, piston speed 0.1 m/sec, damping force value N (F: Stretch side/Shrink side): 687/250<br>● Damping force, piston speed 0.1 m/sec, damping force value N (R: Extension side/Contraction side): 157/118<br>● Vehicle height information (at shipment: maximum upper limit to maximum lower limit): FRONT (+28), REAR (+23)<br><br>Based on the MAX G, which thoroughly pursues a superior ride quality, this is the definitive OEM-style street suspension with a range of damping force options.<br><br>[Features]<br>● The lifted version achieves a powerful, 4WD-like style with a lift of 20mm or more, while the single-tube shock absorbers provide stable driving performance with damping force even at very low speeds.<br>● With 30 levels of damping force adjustment, it can accommodate a variety of situations and vehicle styles.<br><br>[Developer comments]<br>● While the stock suspension is an improvement over previous Jimny models, it still has the characteristic floatiness of a ladder frame, which can be a concern for everyday use.<br>● With 30 levels of damping adjustment, it can be adapted to suit a variety of user specifications and applications.<br>● The lifted version offers a powerful style unique to 4WD vehicles, as well as stable handling thanks to the single-tube shock absorbers, even at very low speeds.<br><br>[Other features]<br>● The main features of the HIPERMAX G+ include the adoption of HKS' traditional "single-tube" design for performance, the use of PNE coating which has a proven track record in snowy areas and coastal regions, and a 30-step damping force adjustment mechanism as standard equipment. It also comes with a long-term warranty of 3 years or 60,000 km.<br>● PNE Coat: This prevents seizing due to rust, which is a common problem with fully adjustable necks. Additionally, the smoother surface reduces the force required for ride height adjustment.<br>● DURA BOOTS: The dust boot material was carefully selected from scratch. By adopting a new material with excellent heat resistance, weather resistance, and ozone resistance, durability has been significantly improved compared to conventional products, and a 3-year/60,000 km warranty has been achieved. This is a tough dust boot that will protect your suspension from harsh environments. "DURABLE" is a coined word derived from "durable" and "(DUST)BOOTS".
|
| Remarks |
Lifted specification
|
| Notes |
Images are for illustration purpose only. Actual product may vary.
|
