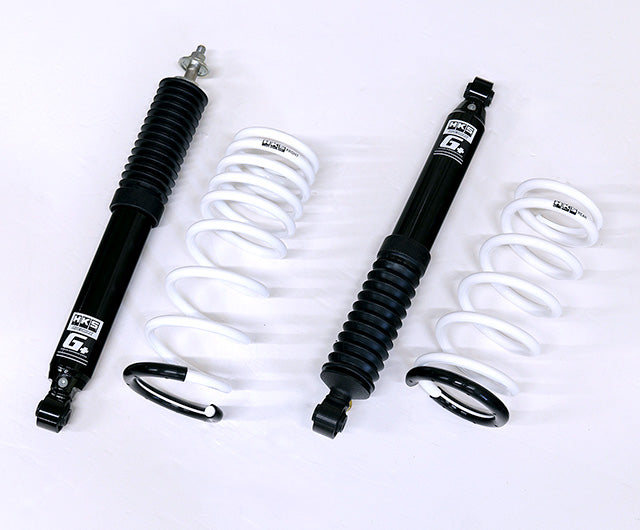

HKS HIPERMAX G+ COILOVER SUSPENSION FOR SUZUKI JIMNY NOMAD JC74W K15B 80270-AS005

HKS

HKS HIPERMAX G+ COILOVER SUSPENSION FOR SUZUKI JIMNY NOMAD JC74W K15B 80270-AS005

80270-AS005

SUZUKI JIMNY NOMAD JC74W

K15B

● Model Year: April 2025 onwards<br>● Series Name: G+<br>● Full kit spring rate settings F/R (N/mm (kgf/mm)): F=42(4.3)/R=39(4)<br>● Free length (F/R mm): Special<br>● Damping force, piston speed 0.1 m/sec, damping force value N (F: Stretch side/Shrink side): 819/319<br>● Damping force, piston speed 0.1 m/sec, damping force value N (R: Extension side/Contraction side): 240/162<br>● Vehicle height information (at shipment: maximum upper limit to maximum lower limit): FRONT (-32), REAR (-30)<br><br>Based on the MAX G, which thoroughly pursues a superior ride quality, this is the definitive OEM-style street suspension with a range of damping force options.<br><br>[Features]<br>● The lowered version lowers the vehicle by approximately 30mm, resulting in a stylish appearance. This lowered SUV style, which is becoming increasingly popular, is achieved with a driving performance unlike that of a typical SUV, thanks to the damping force from very low speeds, a feature unique to monotube shock absorbers.<br>● With 30 levels of damping force adjustment, it can accommodate a variety of situations and vehicle styles.<br><br>[Developer comments]<br>● While the stock suspension is an improvement over previous Jimny series models, it still has the characteristic floatiness of a ladder frame. Lowering the ride height while keeping the stock shocks results in a bumpy, unstable, and unpleasant ride.<br>● With 30 levels of damping adjustment, it can be adapted to suit a variety of user specifications and applications.<br>● The lowered suspension provides a stylish appearance and stable driving performance characteristic of an SUV.<br><br>[Other features]<br>● The main features of the HIPERMAX G+ include the adoption of HKS' traditional "single-tube" design for performance, the use of PNE coating which has a proven track record in snowy areas and coastal regions, and a 30-step damping force adjustment mechanism as standard equipment. It also comes with a long-term warranty of 3 years or 60,000 km.<br>● PNE Coat: This prevents seizing due to rust, which is a common problem with fully adjustable necks. Additionally, the smoother surface reduces the force required for ride height adjustment.<br>● DURA BOOTS: The dust boot material was carefully selected from scratch. By adopting a new material with excellent heat resistance, weather resistance, and ozone resistance, durability has been significantly improved compared to conventional products, and a 3-year/60,000 km warranty has been achieved. This is a tough dust boot that will protect your suspension from harsh environments. "DURABLE" is a coined word derived from "durable" and "(DUST)BOOTS".

Lowered suspension

Images are for illustration purpose only. Actual product may vary.
