HKS HIPERMAX S SERIES COILOVERS SUSPENSION TYPE FOR TOYOTA GR SUPRA DB02 DB42 DB22 B58 80300-AT023C

HKS

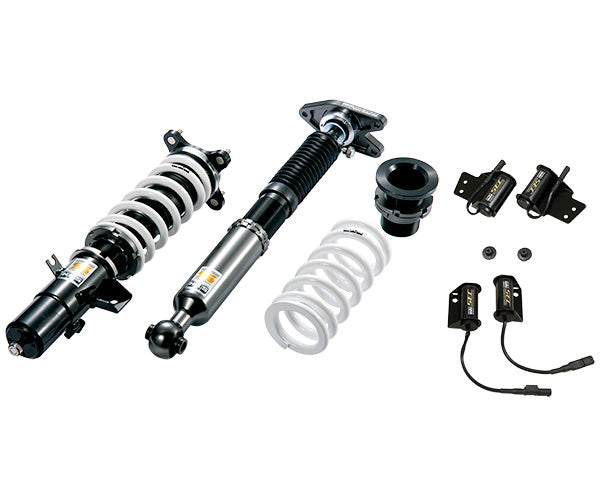

HIPERMAX S SERIES COILOVERS SUSPENSION TYPE

80300-AT023C

TOYOTA GR SUPRA DB02 DB42 DB22

B58

Year Mode: 20/04-
FULL KIT SETTING SPRING RATE F/R N/MM (KGF/MM): F=69(7)/R=118(12)
FREE LENGTH F/R MM: 200/250
DAMPING FORCE PISTON SPEED 0.1M/SEC DAMPING FORCE VALUE N F: STRETCH SIDE/SHRINK SIDE: 1133/515
DAMPING FORCE PISTON SPEED 0.1M/SEC DAMPING FORCE VALUE N R: RETENTION SIDE/RETRACTION SIDE: 633/417
VEHICLE HEIGHT INFORMATION AT TIME OF SHIPMENT (MAXIMUM UPPER LIMIT - MAXIMUM LOWER LIMIT) FRONT: -50(-28 - -57)
VEHICLE HEIGHT INFORMATION AT TIME OF SHIPMENT (MAXIMUM UPPER LIMIT - MAXIMUM LOWER LIMIT) REAR: -45(-22 - -75)

Images are for illustration purpose only. Actual product may vary.

CAN ONLY BE SHIPPED BY FEDEX OR UPS
