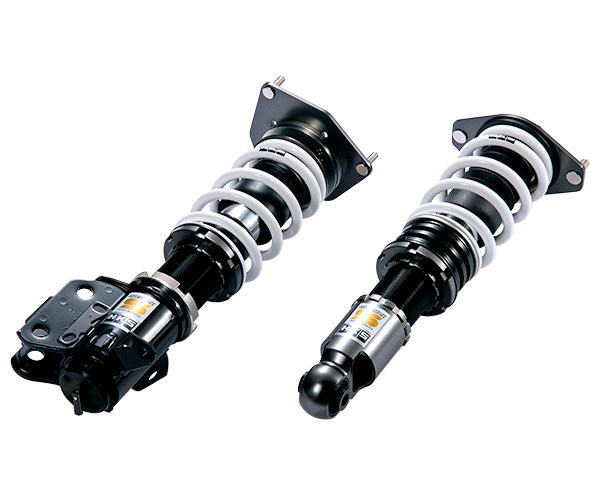

HKS HIPERMAX S SERIES COILOVERS SUSPENSION TYPE FOR TOYOTA 86 ZN6 FA20 80300-AT001

HKS

HIPERMAX S SERIES COILOVERS SUSPENSION TYPE

80300-AT001

TOYOTA 86 ZN6

FA20

Year Mode: 12/04-21/10
FULL KIT SETTING SPRING RATE F/R N/MM (KGF/MM): F=49(5)-R=49(5)
FREE LENGTH F/R MM: 170(BARREL)/170(BARREL)
DAMPING FORCE PISTON SPEED 0.1M/SEC DAMPING FORCE VALUE N F: STRETCH SIDE/SHRINK SIDE: 471/304
DAMPING FORCE PISTON SPEED 0.1M/SEC DAMPING FORCE VALUE N R: RETENTION SIDE/RETRACTION SIDE: 343/363
VEHICLE HEIGHT INFORMATION AT TIME OF SHIPMENT (MAXIMUM UPPER LIMIT - MAXIMUM LOWER LIMIT) FRONT: -16 (0 - -58)
VEHICLE HEIGHT INFORMATION AT TIME OF SHIPMENT (MAXIMUM UPPER LIMIT - MAXIMUM LOWER LIMIT) REAR: -12(0 - -53)

Images are for illustration purpose only. Actual product may vary.
