CUSCO STREET ZERO A FRONT CAMBER ADJUSTABLE PILLOW UPPER COILOVERS FOR TOYOTA COROLLA SPORTS NRE210H ZWE211H 1A9 61N CN

CUSCO

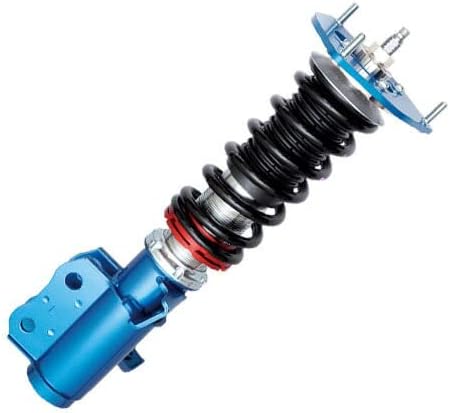

STREET ZERO A FRONT CAMBER ADJUSTABLE PILLOW UPPER COILOVERS

1A9 61N CN

TOYOTA COROLLA SPORTS NRE210H ZWE211H

●Overall length adjustment type vehicle height adjustment (front/full-tap type) ●Front and rear damping force 40-step adjustment that can be freely changed. ●Camber-adjustable pillow ball upper mount standard equipment (front only) for linear steering feel and versatile settings. ●Twin-tube structure shock absorbers are used to provide a mild ride. ●Exclusively designed to ensure sufficient bump stroke for each vehicle type. ● Overhaul support (charged). ●Upper mount specifications F: Camber adjustable pillow ball upper mount R: Reinforced rubber upper mount ●Damping force adjustment F: Damping force 40-step adjustment R: Damping force 40-step adjustment : O/H compatible (paid) Vehicle height adjustment mechanism F: Full length adjustment type R: Threaded spacer adjustment type Recommended vehicle height adjustment width Corolla Sports ZWE211H (Hybrid) F: -30~-5mm R: -40~- 15mm Corolla Sport NRE210H (1.2L Turbo) F:-30~-5mm R:-35~-10mm Reference Vehicle Height Corolla Sport ZWE211H (Hybrid) F:-25mm R:-30mm Corolla Sport NRE210H (1.2L Turbo) F :-25mm R:-25mm Maximum vehicle height adjustment width Corolla Sport ZWE211H (Hybrid) F:-90~0mm R:-45~-5mm Corolla Sport NRE210H (1.2L Turbo) F:-90~0mm R:-40 ~0mm Standard spring F: ID73-200-5kgf/mm R: Dedicated shape 4.5kgf/mm Changeable spring (free when ordering) F: ID73-200-6,7kgf/mm R: No setting

●Bracket is specially designed for each model. ● Reliable domestic production, ISO 9001 certified factory, standardized product that also meets ASEA standards. ● 1 year or 10,000 km warranty set. (It is necessary to apply with the user registration postcard included in the product.) ・When adjusting the damping force after installation, it is necessary to remove the shock top cover and the inner cover inside the fender, or the shock absorber. There are cases.・For Toyota Safety Sense users (*hereinafter referred to as TSS), there is a possibility that the TSS will malfunction due to the lowering of the vehicle height. Please note that we are not responsible for malfunctions caused by installing this product.・Please note that if this product is installed on a vehicle equipped with AVS (Adaptive Variable Suspension System), the AVS function will not be available. Also, please fix the removed AVS coupler in a position where there is no interference when driving, and perform waterproofing etc. If an error (warning light), etc. is displayed, have it checked at a dealer.・Not compatible with "e-con2" (not mountable)

Images are for illustration purpose only. Actual product may vary.
