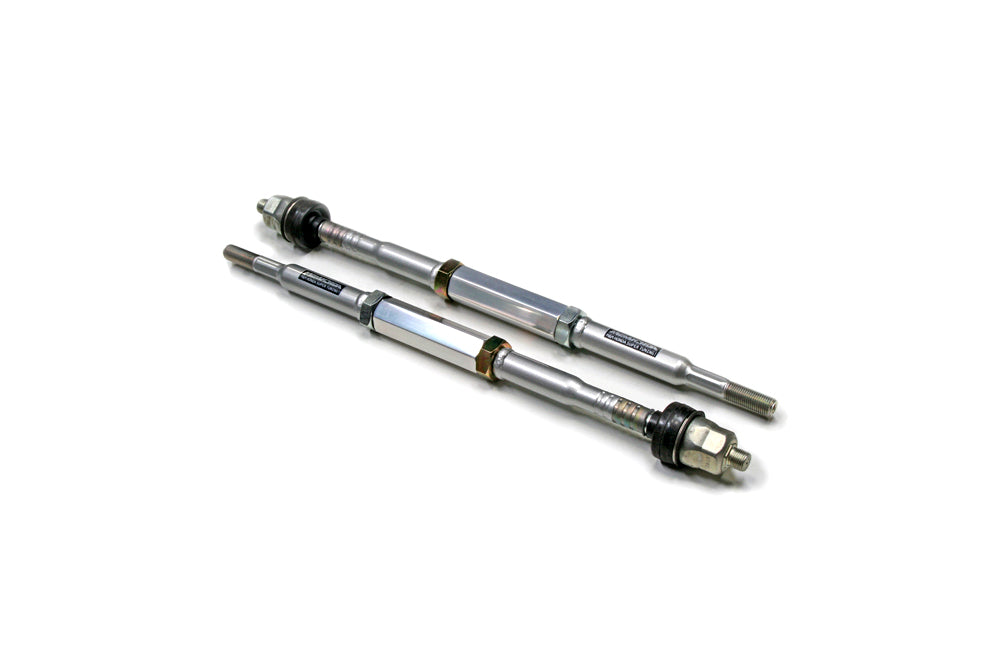

M&M HONDA ADJUSTABLE STEERING TIE ROD KIT FOR CIVIC EP3 00807-EP3-M001

M&M HONDA

ADJUSTABLE STEERING TIE ROD KIT

00807-EP3-M001

CIVIC EP3

In the case of EP3 (including DC5), if the vehicle height is lowered or the camber angle is changed, the length of the steering tie rod is adjusted to adjust the alignment (toe-in). With a genuine steering tie rod, if the adjustment range is large, it will not be possible to adjust and the toe-in adjustment range will be exceeded. The length-adjustable steering tie rod with a turnbuckle can be adjusted to ± 46 mm with a minimum length of 425 mm and a maximum length of 471 mm, so it is a part that can be returned to the appropriate value.

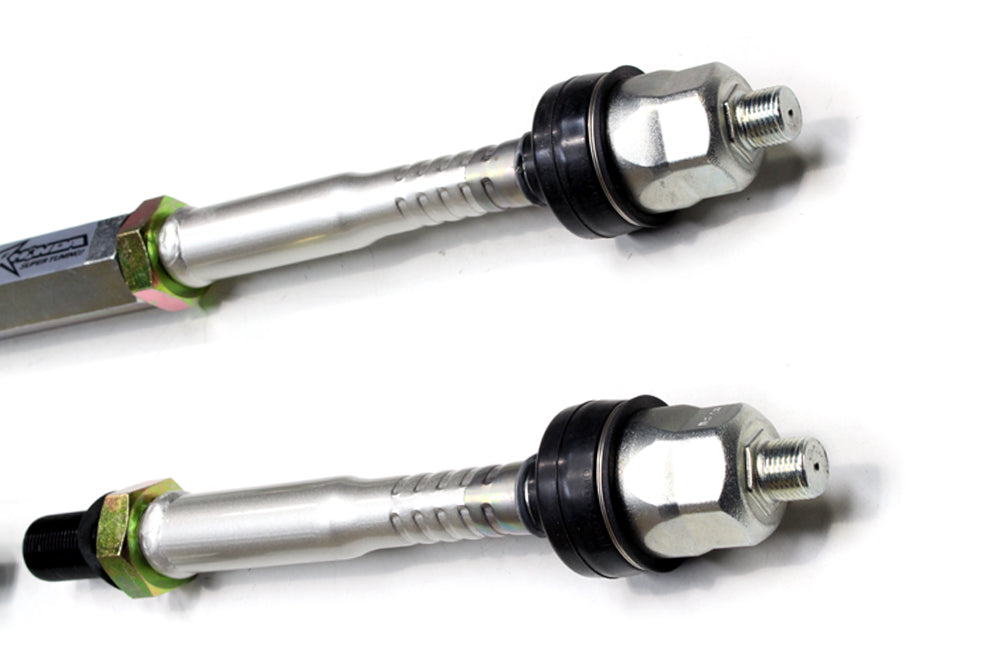

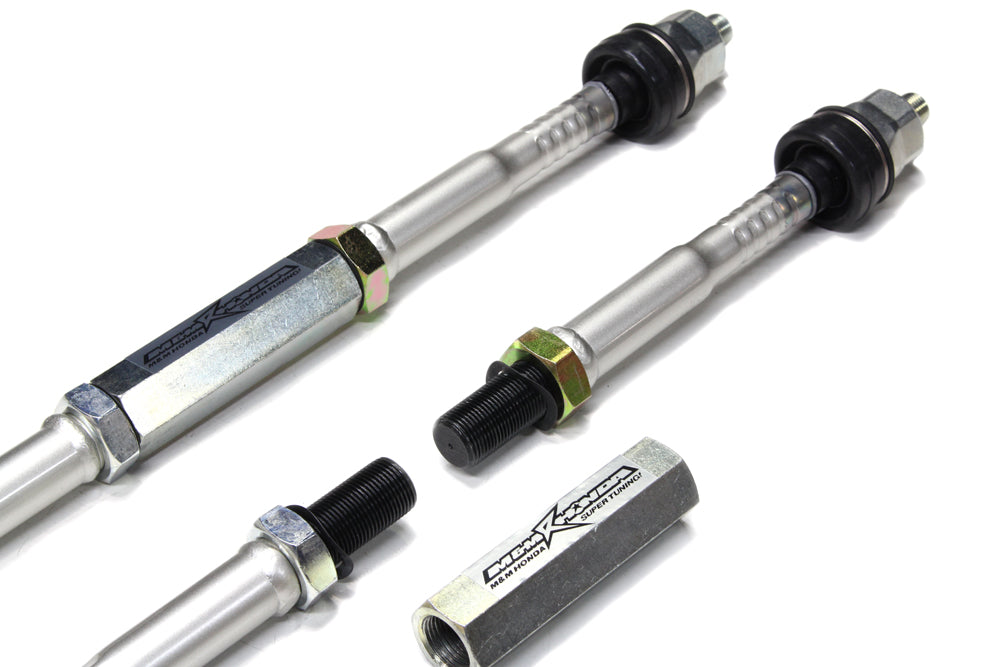

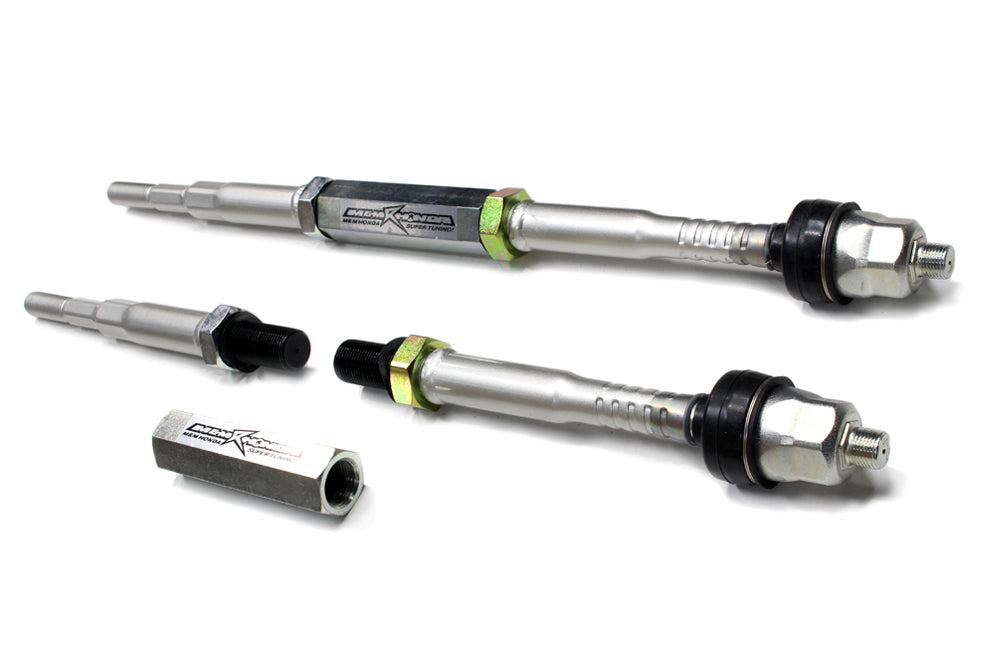

With the turnbuckle length-adjustable steering tie rod, the shortest length is 425 mm and the longest length is 471 mm, ± 46 mm. The tie rod end is not included, so remove the genuine one and attach it. Please adjust the alignment after installation. It may be necessary to adjust the steering angle and centering of the steering. Be sure to perform regular inspections after mounting and visually check for loose bolts and nuts, scratches and damage. Please perform inspection work before and after driving on the circuit, parts for exclusive use of the competition vehicle.

Images are for illustration purpose only. Actual product may vary.
