J'S RACING SPL ALUMINUM RADIATOR RR FOR HONDA CIVIC FK8 RAS-K8-RR

J'S RACING

SPL ALUMINUM RADIATOR RR

RAS-K8-RR

HONDA CIVIC FK8

Material: All aluminum
FK8 circuit user essential item !!!
Triple turn type large capacity aluminum radiator is finally here !!!
FK8 water temperature cooling system is genuine for the amount of heat generated Performance is not catching up. The main points are
-The amount of heat generated by the turbine is very large due to the high output of the turbo.
-Insufficient capacity of the radiator core and fin problems. > ・ It is difficult for the heat in the engine room to escape
.
Regarding this FK8, it is necessary to improve the cooling performance not only for the thermostat, sports coolant and aero parts, but also for the total cooling performance, and improving the heat exchange performance of the radiator is a big point of improving the cooling performance.
J'S RACING has been conducting radiator tests and prototypes for a long time, but we have adopted the triple turn type in search of specifications that exceed the conventional aluminum radiator.
The position of the cooling water on the OUT side has been changed and redesigned so that heat exchange can be performed evenly over the entire area.
The design has inevitably increased the number of parts and costs, but it was an unavoidable decision to lower the average water temperature even once.
As a result of a comparative test at the Suzuka Circuit International Racing Course using our demo car, the water temperature during the 6 laps including INOUT was -25 °C at maximum, and the water temperature was -15 °C on average. It was also confirmed that the ascending speed decreased and the water temperature decreased speed increased. (* 1, * 2)
By stabilizing the water temperature, you can obtain various merits such as power down by the high water temperature correction of the ECU, prevention of deterioration of fuel consumption, and engine protection.
A must-have item for street users as well as circuit users!
● Genuine tube width 5mm → 10mm
● Genuine fin pitch 1.5mm → 3mm
● Thickness: 48mm
● Cooling fan and air conditioner can be installed.
● Flex round processing is adopted
This product is subjected to "flex round processing" made by an integrally molded press. As a result, it is possible to mold without changing the plate thickness of the bent or folded part, and it is possible to increase the strength and reduce the weight. Efficiently flowing the cooling water inside improves the heat dissipation effect and prevents the water temperature from rising when running at full throttle.

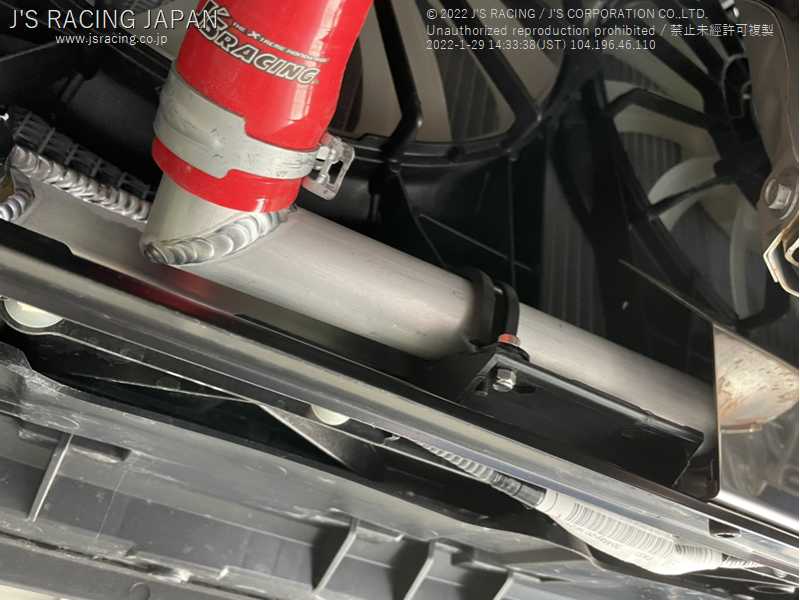

● Accessories: OUT side piping, joint hose, band, heat shield plate

Engine:
* 1
Test vehicle: J'SRACING FK8
Specifications: SPL aluminum radiator, J'SRACING front grille, J'SRACING TYPE-V bonnet, low temp thermostat, low temp fan (ECU)
Weather: sunny, Outside temperature 30 °C
* 2
Even if the vehicle has the same specifications as the test vehicle, the same result may not be obtained.
The effect varies depending on the circuit you are driving.
Since it is designed with the maximum capacity increase compared to the genuine size, there may be some parts that interfere. In that case, please adjust the mounting position and cut.

Images are for illustration purpose only. Actual product may vary.
