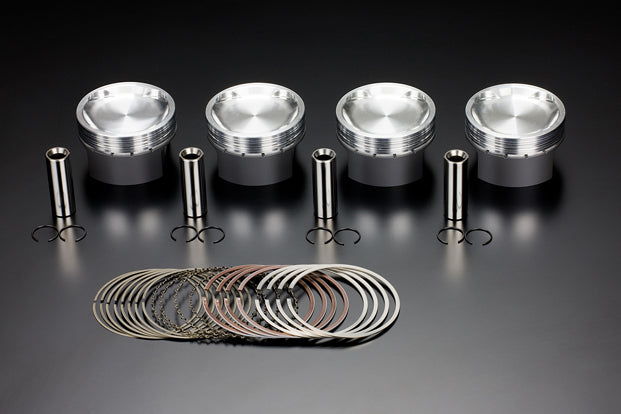

TODA RACING Low Comp Forged Piston KIT For ZC31S ZC32S SWIFT SPORT M16A 13050-M16-T00

TODA RACING Low Comp Forged Piston KIT For ZC31S ZC32S SWIFT SPORT M16A 13050-M16-T00

¥117,821 JPY ¥138,600 JPY

| /

 More payment options
Brand
TODA RACING
Series Name
Low Comp Forged Piston KIT
Product Number
13050-M16-T00
Compatible Car
ZC31S ZC32S SWIFT SPORT
Compatible Models
M16A
Product Description
Increasing the capacity from 1,586cc to 1,884cc through a larger bore improves the whole engine performance. With retaining the standard stroke, the engines sporty characteristics are maintained.
Defric coating (Lubricous film) is applied to the piston skirt for a reduction in friction and loads as well as improved durability.
*TODA Power Liner KIT and TODA Head Gasket are required. (Sold separately)
Engine type: M16A(ZC31S/ZC32S)
Bore×Stroke: ø85.00×83mm
Displacement: 1884cc
Crown Volume: -21.5cc/-23.2cc
Projection Height: -0.3mm
Reference C/R: TODA head GK t=0.6mm ξ≈9.5:1
Remarks
*1:Crown volume is measured "from the piston shoulder"/"from the deck of the block".
*2:Piston shoulder height is measured from the deck of the block.
*3:The compression ratios given above are only to be taken as a guide, measurements are required.
Notes
Images are for illustration purpose only. Actual product may vary.
