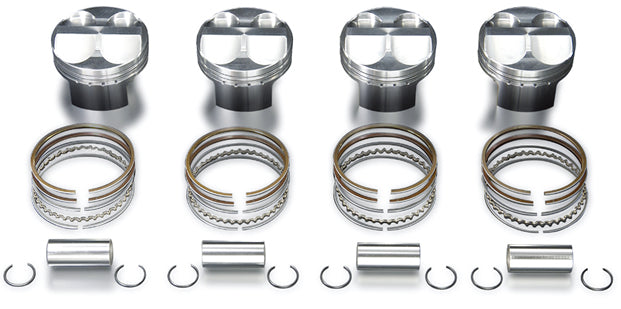

TODA RACING Ultra High Comp Forged Piston KIT For S2000 F20C 13010-F20-0H0

¥133,717 JPY ¥157,300 JPY

| /

Brand	TODA RACING
Series Name	Ultra High Comp Forged Piston KIT
Product Number	13010-F20-0H0
Compatible Car	S2000
Compatible Models	F20C
Product Description	Defric coating (Lubricous film) is applied to the piston skirt, for a reduction in friction and loads as well as improved durability. Engine Type: F20C Bore×Stroke: ø87.00×84mm (standard stroke) Displacement: 1997cc Crown Volume: 10.8cc/16.7cc Projection Height: +1.0mm (from the deck of the block) Reference C/R: Standard head GK t=0.6mmξ≈12.9:1
Remarks	(For 84mm standard stroke of 2000cc) Based on standard piston pin diameter. 1:Crown volume is measured "from the piston shoulder"/"from the deck of the block". 2:The compression ratio given above are only to be taken as a guide, measurements are required.
Notes	Images are for illustration purpose only. Actual product may vary.
