RACING FACTORY YAMAMOTO LOWER ENGINER MOUNT BRACKET FOR HONDA S2000 AP1 AP2 RACING-FACTORY-YAMAMOTO-00056

RACING FACTORY YAMAMOTO

LOWER ENGINER MOUNT BRACKET

RACING-FACTORY-YAMAMOTO-00056

HONDA S2000 AP1 AP2

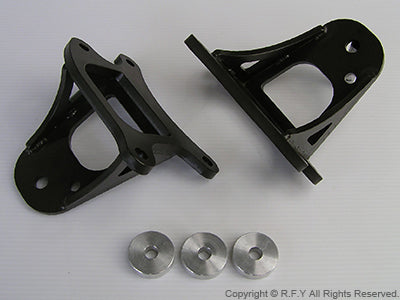

Contents: Engine Mounting Bracket Right×1 Left ×1; Bolt Length Adjustment Collar Right ×4 Left ×4; Mission Mount 10mm Color ×3

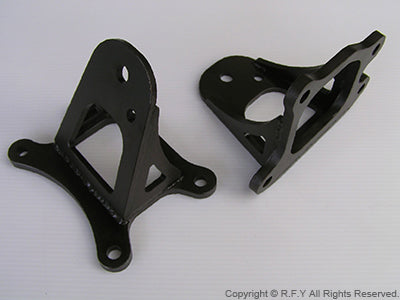

It will be an engine mounting bracket and a mission mount spacer for lowering the engine. It is lower-mounted by 20 mm at the engine mount position and 10 mm at the mission mount position. It was developed as a part exclusively for competition. The body is made of steel.

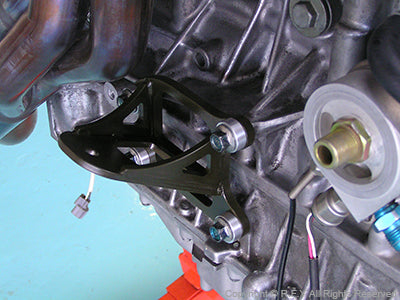

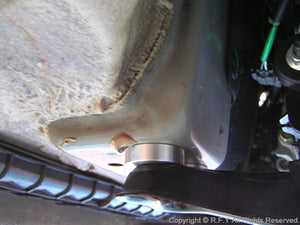

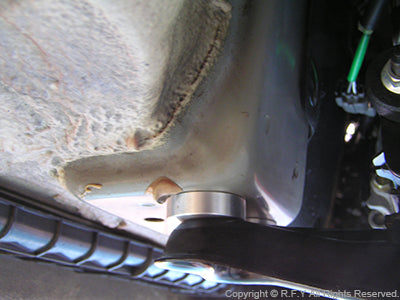

* Confirmed to be installed on genuine, infinity, and Toda Racing exhaust manifolds. In the case of Toda Racing, it was confirmed that there was a gap of about 3 mm during the installation test, but there is a risk of interference with the bracket due to individual differences, vibration of the muffler, and thermal expansion. If there is a risk of interference after confirming the installation, scrape off the part painted on the light blue color in the photo below with a luter. Also, scrape off the silver-painted part of the Stopper R outer. It is recommended to protect the rubber part of the engine mount with oblique heat tape.

Images are for illustration purpose only. Actual product may vary.
