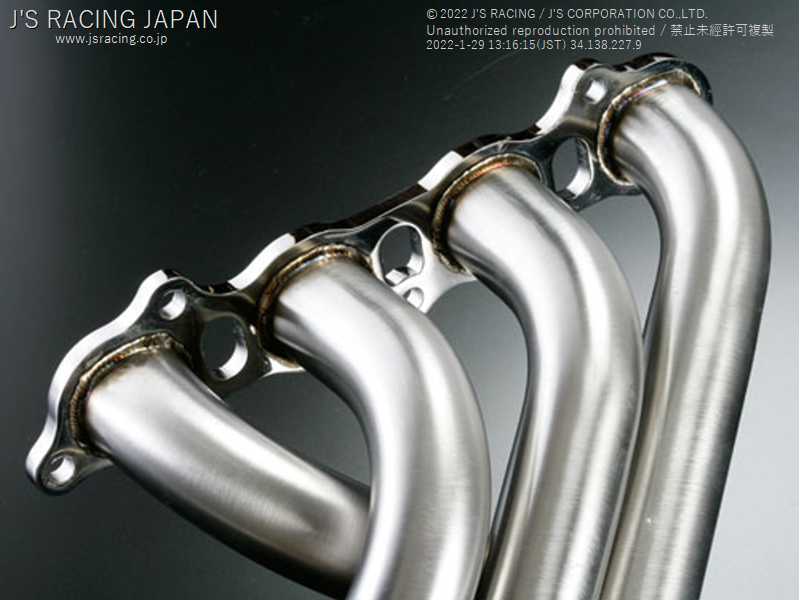

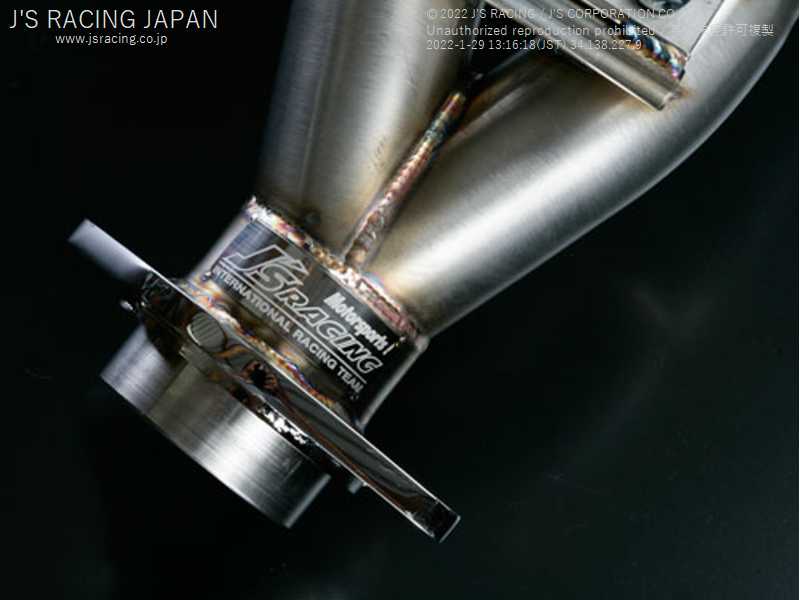

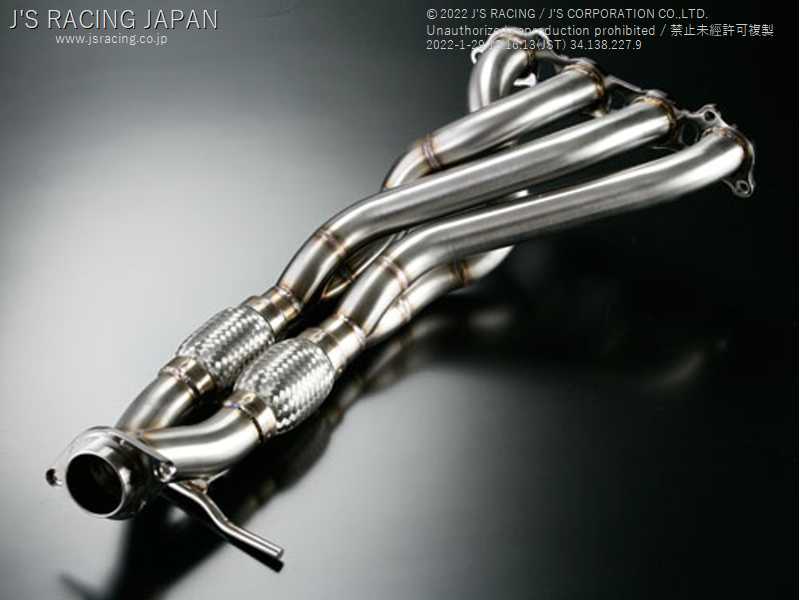

J'S RACING FX-PRO EX MANIFOLD FOR HONDA CIVIC FD2 K20A FXA-D2

¥205,286 JPY

| /

 More payment options
Brand
J'S RACING
Series Name
FX-PRO EX MANIFOLD
Product Number
FXA-D2
Compatible Car
HONDA CIVIC FD2
Compatible Engine
K20A
Product Description
Material: SUS304 (t = 1.2mm-1.5mm)
Completely renewed exhaust manifold for FD2 TYPE-R, which is very popular! Achieves power-up and torque-up.
Please experience the sharp rise and acceleration power in the entire rotation range.
Manufactured by a skilled craftsman who knows all about exhaust manifolds, it is a completely handmade product in which each part is welded and stepped.
This is a gem that you should definitely pick up.


Structure: SUS304 4-2-1 (45φ-50φ-60φ)
t = 1.2-1.5mm

From a normal engine It supports a wide range of cam replacement-high compression-bore up
(2.2L-2.4L).
Also, by combining with our "HYPER ECU", it is possible to further draw out the potential of the K20A engine.
[Our measurement Dynapack data]
Test vehicle
Engine: Normal
Intake: MAX FLOW (genuine replacement air cleaner)
Exhaust: Genuine catalyst / FX-PRO full titanium muffler 60RS
● Normal EX Manifold
226.1ps / 8230rpm
20.9kg / m / 6198rpm
● FX-PRO EX Manifold
230ps / 8284rpm
21.5kg / m / 6256rpm
Remarks
Engine: K20A
* Observe the specified torque and install correctly.
* Only the head side gasket is included.
Notes
Images are for illustration purpose only. Actual product may vary.
