DEFI ADVANCE CONTROL UNIT SE SKY LIMITED EDITION DF17702

DEFI

ADVANCE CONTROL UNIT SE SKY LIMITED EDITION

DF17702

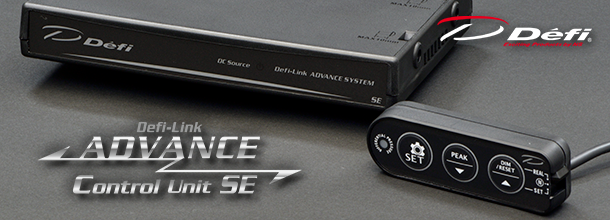

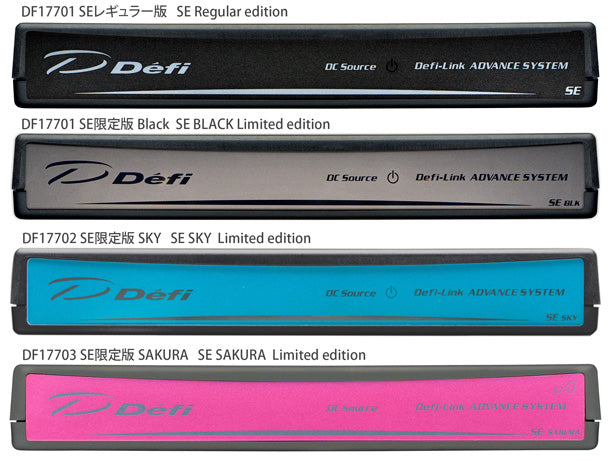

Defi-Link ADVANCE Control Unit SE is necessary to operate ADVANCE gauges and displays. All settings and operations of the ADVANCE system are handled by this product SE SAKURA Limited editon (300 units) : Cherry blossom pink panel/Silver logo. The body color is gray. Main specifications, functions, and features:ADVANCE SystemNecessary for ADVANCE gauges and displaysSwitch unit attachedIllumination ON/OFF: interlocked with vehicle illumination switchIllumination color: White (switch)Indicator outputFeatures:An interactive communication advanced system is implemented.One ADVANCE Control Unit SE can control up to 7 ADVANCE gauges and displays all in at a time. (Ex. 4 ADVANCE A1s and 3 ADVANCE BFs)The installation of additional gauges is easy. Just connect an additional gauge to other connected gauge and attach the sensor to this product.Gauges can be controlled from distance with the included switch unit.By connecting ADVANCE FD/ZD to the ADVANCE system, the illumination of ADVANCE gauges is controlled automatically.Opening and ending modes can be selected from 2 variations.Self-diagnosis system detects a disconnection of wire, short circuit and communication error, and indicates the error condition.Warning value can be set. The warning condition is noticed by warning LEDs in connected gauges, displays and buzzer. (The buzzer can be set ON/OFF.)With both fuel pressure and turbo sensors installed, differential pressure can be monitored on the fuel pressure gauge or ADVANCE FD/ZD.

*There are no differences in functionality and the switch design between the regular and limited edition. The product of Defi-Link ADVANCE SYSTEM cannot be connected with the product of Defi-Link SYSTEM. It is not compatible with the product of Defi-Link SYSTEM. Sensors are common in ADVANCE system and Defi-Link System except turbo sensor, but sensor wires are not common.When using ADVANCE Control Unit SE, purchase ADVANCE gauges and displays additionally.

Images are for illustration purpose only. Actual product may vary.
